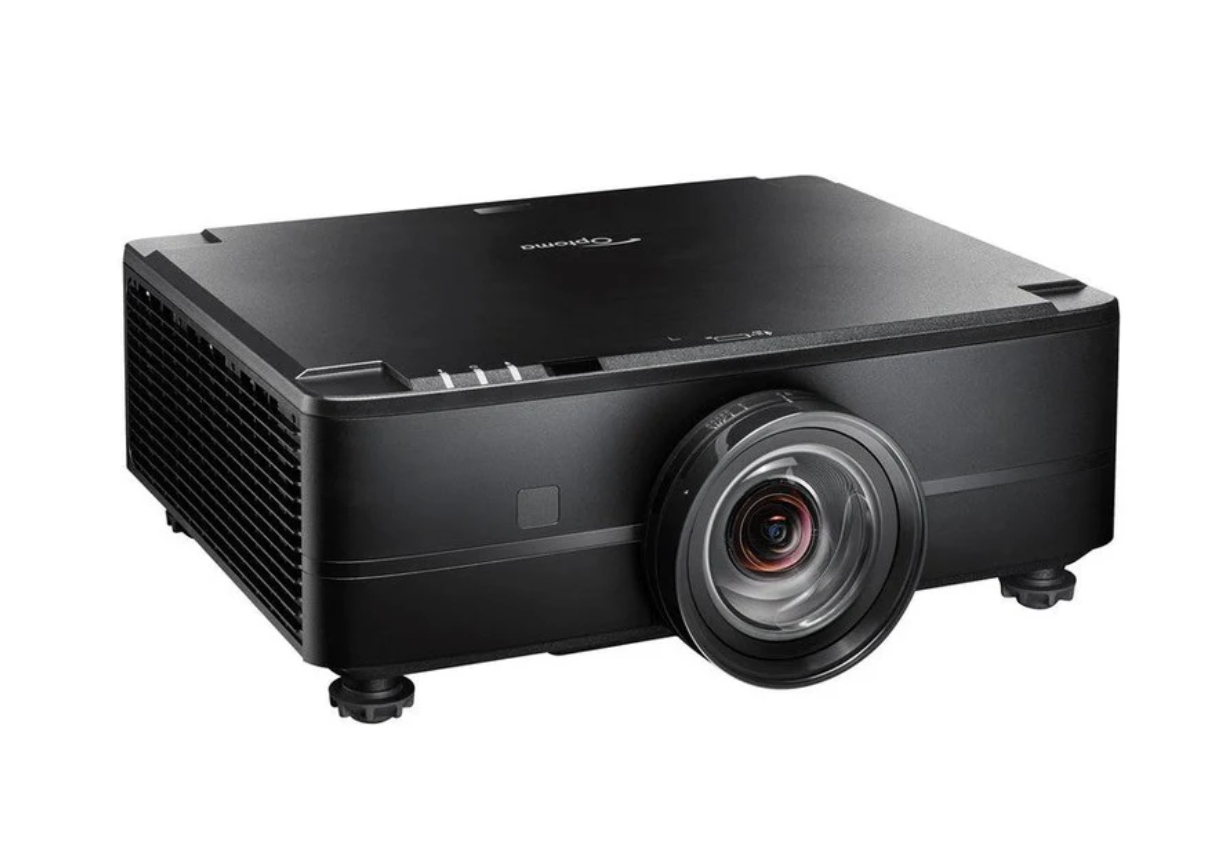

Optoma ZK810TST 4K UHD Short Throw Laser Golf Simulator Projector

The Optoma ZK810TST combines high-output laser projection, 4K UHD detail, and short-throw flexibility for serious golf simulator installations. It produces a 3840 x 2160 image with 8.3 million pixels. This resolution keeps course graphics, shot data, menus, and swing-analysis overlays clear on a large impact screen. The product page rates its brightness at 8,500 lumens and also lists 7,200 ANSI lumens in the technical specification table. This output suits large screens and rooms where some ambient light remains during play.

A dedicated Golf Sim picture mode gives the ZK810TST a clear advantage in simulator rooms. The mode adjusts color grading for golf-course content, including greens, fairways, and sky tones. This helps the projector maintain natural-looking course colors while operating at high brightness. Optoma recommends using current firmware to access the latest available picture-mode features. HDR10 compatibility and a 3,000,000:1 contrast ratio further improve the separation between bright highlights, shaded terrain, and darker course details.

The 0.65–0.75:1 short-throw ratio helps create a large image without placing the projector at the back of the room. This positioning can reduce installation challenges in spaces with limited depth. A 1.15x motorized zoom lets the installer fine-tune the image from the remote after mounting. For a 120-inch, 16:9 screen, the listed lens-to-screen distance is approximately 6.5 to 7.5 feet. The projector supports image sizes up to 300 inches, making it suitable for large single-bay rooms and commercial simulator environments.

The ZK810TST uses a DuraCore laser light source rated for up to 30,000 hours. The solid-state design removes the need for routine lamp replacements and supports instant startup and shutdown. The projector also carries a 24/7 operation rating. This benefits teaching studios, entertainment venues, and simulator facilities with long daily schedules. Users can move between sessions without waiting for a lamp to warm up or cool down.

An IP6X-rated sealed optical engine protects the projection system against dust ingress. This construction is valuable in active simulator rooms, where foot traffic and impact-screen use may introduce fine airborne particles. The sealed design helps protect the optical path and supports consistent image performance over extended use. It also complements the long-life laser by reducing routine maintenance demands.

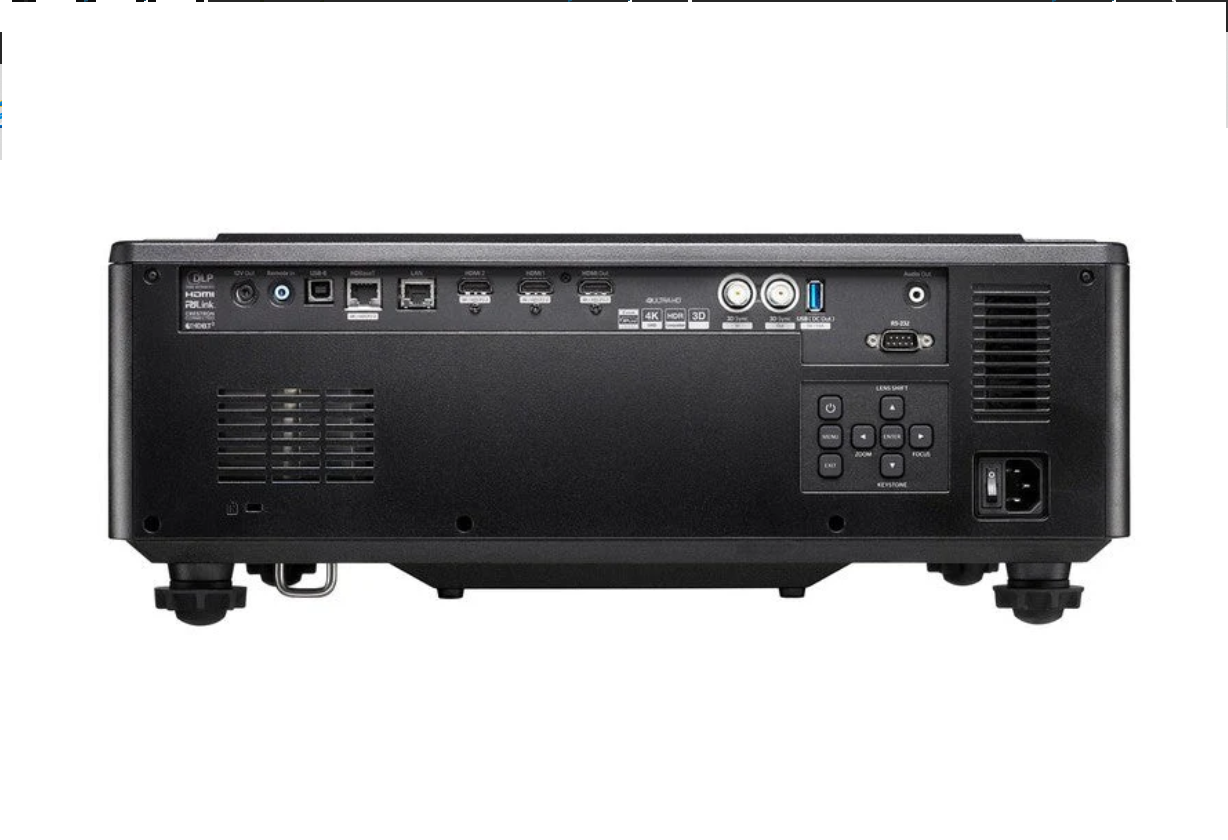

Professional connectivity supports both straightforward and complex installations. The projector includes two HDMI 2.0 inputs, HDBaseT 3.0, two VGA inputs, an HDMI output, RS232, RJ45, a 12V trigger, and 3D Sync connections. HDBaseT supports a Cat6 cable run of up to 328 feet. This allows the source computer or equipment rack to remain far from the projector. The long-run connection can carry 4K video, audio, and control signals through one cable, reducing the need for long HDMI runs or extra signal hardware.

The HDMI and HDBaseT inputs accept video from computers running golf simulator software. The reference page names GSPro, E6 Connect, TGC 2019, Creative Golf 3D, Awesome Golf, Full Swing, and TrackMan as examples. This is display compatibility rather than direct software integration. The simulator computer performs the software processing, while the projector displays its video output. Dual HDMI inputs also make it easier to connect more than one source and switch between them.

For larger facilities, the ZK810TST supports remote monitoring and centralized control through RJ45, RS232, and HDBaseT. It works with Crestron, Extron, AMX, and PJLink control environments. These options help operators manage projectors across several simulator bays without adjusting every unit in person. The two built-in 10-watt speakers can provide basic audio, although a dedicated room sound system may remain preferable for a larger commercial space.

The projector weighs 16.09 pounds. Installers should use a ceiling mount rated for the unit and the selected installation position. The reference page identifies the Optoma OCM815W as a compatible mount. Rated operating noise is 34 dB in Normal mode and 38 dB at maximum output. These measurements help buyers plan projector placement in relation to the hitting area and seating.

Warranty coverage includes a three-year limited parts-and-labour warranty and first-year express advance replacement. The laser carries separate coverage for five years or 12,000 hours, whichever occurs first. Top Shelf Golf also states that unused and undamaged products may be returned within 30 days of receipt, subject to its return conditions and a 15% restocking fee. Buyers should treat the retailer’s return policy and the manufacturer’s warranty as separate forms of coverage.

The Optoma ZK810TST is best suited to buyers who need more than basic home-projector performance. Its strongest advantages are its high brightness, 4K UHD resolution, short-throw lens, motorized zoom, dedicated Golf Sim mode, and commercial control options. Together, these features support a clean installation, clear on-screen information, and dependable daily operation. The result is a focused projection solution for large golf simulator rooms, professional instruction spaces, and multi-bay venues.
