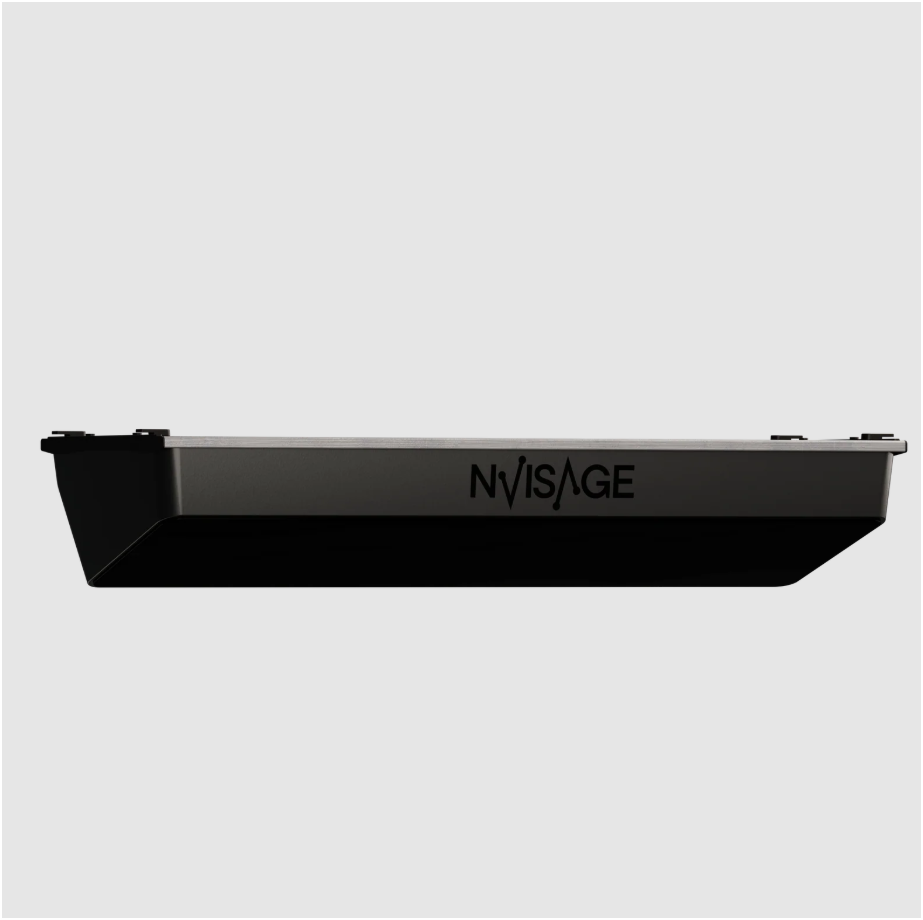

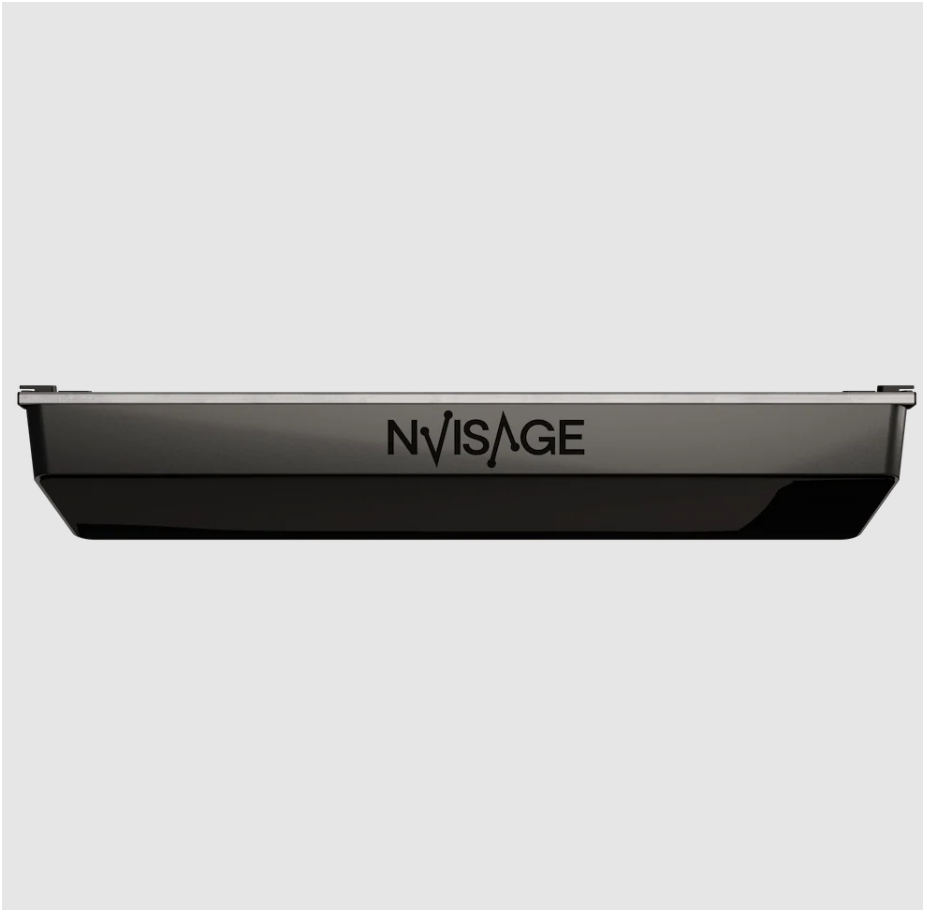

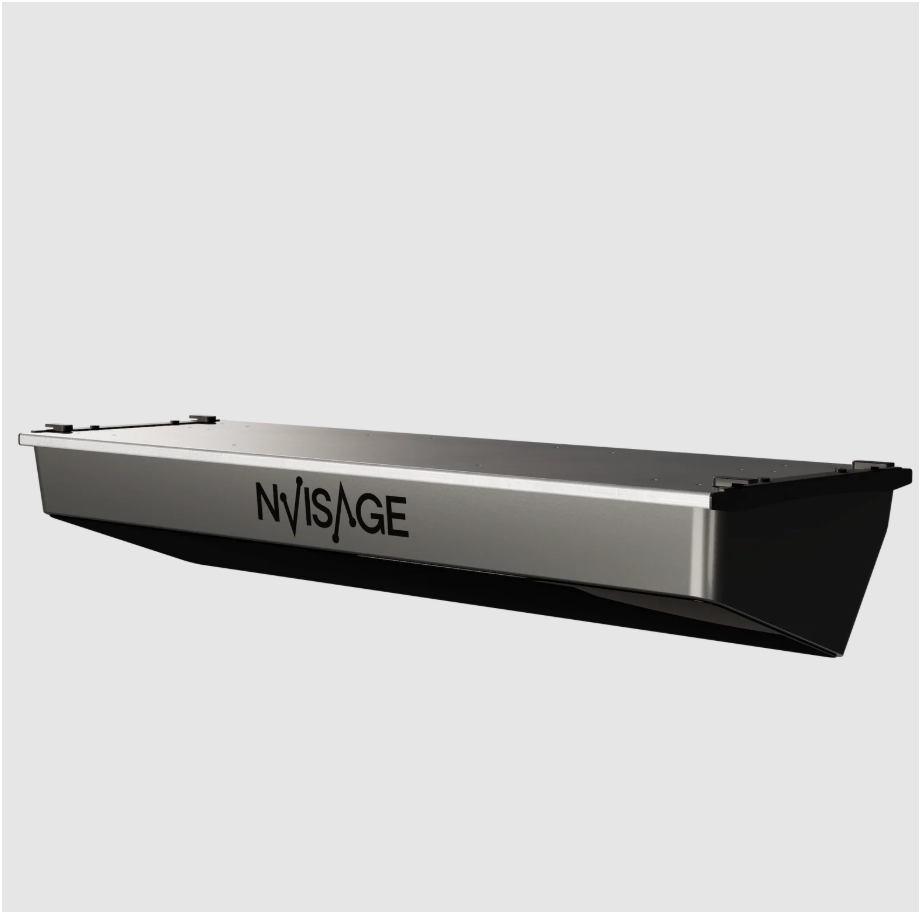

NVISAGE N1 Overhead Golf Launch Monitor

The NVISAGE N1 Overhead Golf Launch Monitor gives indoor golfers a permanent ceiling-mounted tracking system for simulator play and practice. Its overhead position keeps the launch monitor off the floor and away from the hitting area. Golfers do not need to step around a floor-based unit or move the device between shots. The fixed layout suits dedicated home simulator rooms where clear floor space and a consistent setup matter.

The N1 uses photometric high-speed cameras to capture shot information. It measures eight data points: clubhead speed, ball speed, launch angle, spin axis, horizontal launch angle, backspin, sidespin, and total spin. These measurements cover key parts of speed, launch direction, and rotation. Golfers can use them to review each swing and see how changes at impact affect the resulting shot.

The speed measurements give players immediate feedback on both the club and the ball. Clubhead speed shows how fast the club moves through the hitting area. Ball speed shows the speed produced after impact. Looking at both numbers can help golfers compare swings and evaluate how consistently they transfer speed to the ball during a practice session.

Launch and spin measurements add more detail to each result. Launch angle shows the vertical angle at which the ball starts. The horizontal launch angle shows its initial direction. The spin axis helps describe the tilt that influences shot curvature. Backspin, sidespin, and total spin give golfers a clearer view of ball rotation. Together, these numbers make the N1 useful for structured practice instead of simply showing where a simulated shot finishes.

The N1 requires specially marked balls for tracking. The marked-ball system helps the cameras read spin and ball-flight information, and the package includes twelve marked balls. Golfers can start with the required balls already available for the simulator. This setup also makes sense in a fixed indoor room, where the same marked balls can remain in the hitting area between sessions.

The ceiling-mounted position supports both right-handed and left-handed golfers. Players can switch hitting sides without repositioning the launch monitor. This makes the N1 practical for shared simulator rooms, family setups, and practice spaces used by golfers with different orientations. The overhead design also keeps tracking hardware away from the floor around the golfer.

The N1 works indoors only and suits controlled-light simulator environments. The unit mounts 9 to 10 feet high and 2 feet in front of the hitting surface. These placement requirements make room planning important before installation. Golfers need enough ceiling height and a suitable mounting location above the simulator area. The fixed position also makes the N1 better suited to a permanent indoor setup than a launch monitor intended for outdoor range use.

The N1 provides instant feedback with no listed shot delay. Players can review the measured result immediately after each swing. This keeps practice moving and reduces interruptions between shots. Fast feedback also helps when golfers want to make a small swing adjustment, hit again, and compare the new result with the previous shot.

The launch monitor works with PC-based simulator setups. Compatible software includes the N1 in-house practice software, GSPro, and E6. This support gives golfers options for practice and simulator course play. Users still need a compatible PC and any required software licenses or subscriptions for the simulator programs they choose.

The N1 requires a Windows PC with the specified hardware and operating system. The requirements include an Intel i5-8400 processor, 8 GB of RAM, a GeForce GTX 1060 graphics card, Windows 10 64-bit Version 1803 or later, and an Ethernet port. For AMD systems, the requirements specify 3rd-generation Ryzen or higher and Ryzen 3600X or higher. The N1 does not support the AMD Ryzen 2700. It also does not support Apple iOS or macOS.

The wired connection uses Ethernet to link the N1 to the computer. The package includes an Ethernet cable and an Ethernet-to-USB 3.0 adapter. It also includes the required power adapter and cable. These accessories cover the main connection hardware for integrating the launch monitor with a compatible PC-based simulator setup.

Installation requires a permanent overhead location, so buyers should plan the computer connection and hitting surface around the stated mounting position. The package includes six mounting screws and a level to support the physical setup. A calibration board also comes with the N1. These included items reduce the number of small setup accessories golfers need to source separately.

The full package contains the N1 Launch Monitor, calibration board, power adapter and cable, Ethernet cable, Ethernet-to-USB 3.0 adapter, six mounting screws, level, and twelve marked balls. The package does not include a simulator PC, display, projector, hitting mat, enclosure, or third-party simulator software. Buyers can therefore plan the N1 as the shot-tracking part of a larger indoor simulator system.

The N1 focuses on a fixed indoor experience rather than portability. Its ceiling position leaves the hitting area clear, while marked-ball tracking supports spin and ball-flight reads. Its eight measured data points give golfers core feedback on speed, launch, direction, and spin. This combination suits players who want focused shot information for practice and simulator play.

Before choosing the N1, golfers should confirm four parts of the room and computer setup. The ceiling needs to support a mounting position 9 to 10 feet high, with the unit 2 feet in front of the hitting surface. The simulator computer needs to meet the Windows hardware requirements and provide an Ethernet connection. The hitting area needs to stay indoors under controlled lighting. Players also need to use marked balls during tracking. These requirements make the N1 a deliberate choice for a dedicated simulator room rather than a device that moves between a home setup and the driving range.

The N1 comes with a one-year warranty. The included mounting hardware, marked balls, connection accessories, and calibration board provide the main N1-specific components needed for installation. Golfers can combine those components with a compatible Windows PC and suitable indoor simulator space to create a permanent overhead tracking setup.
