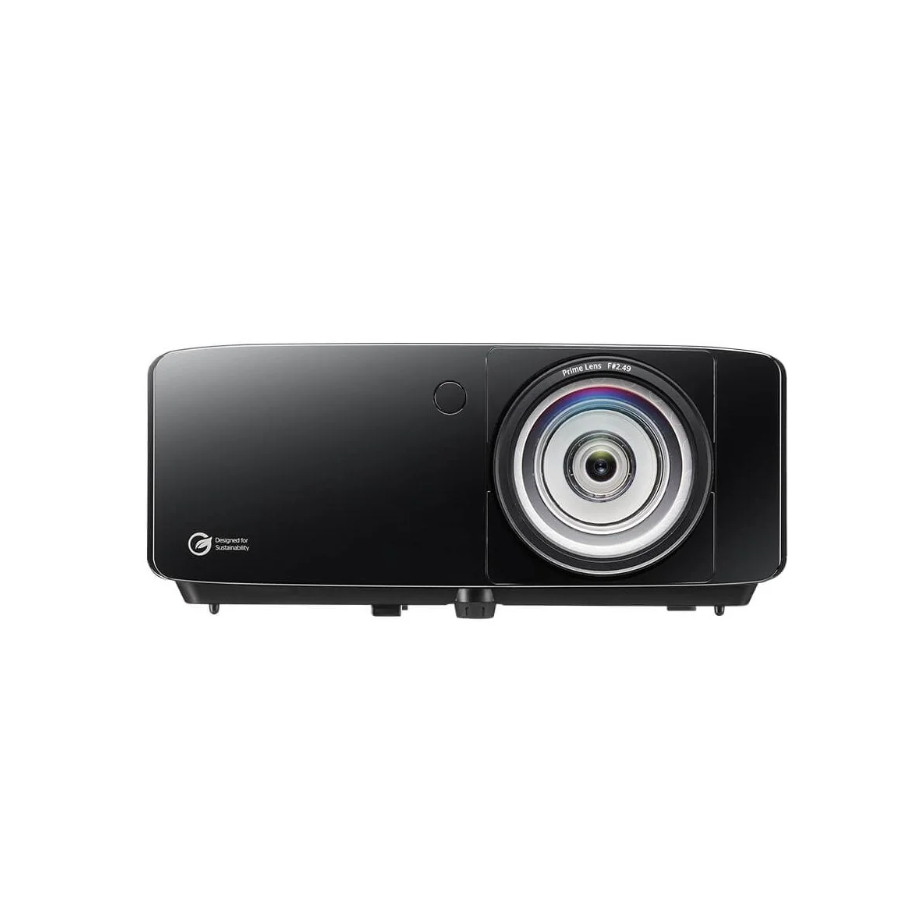

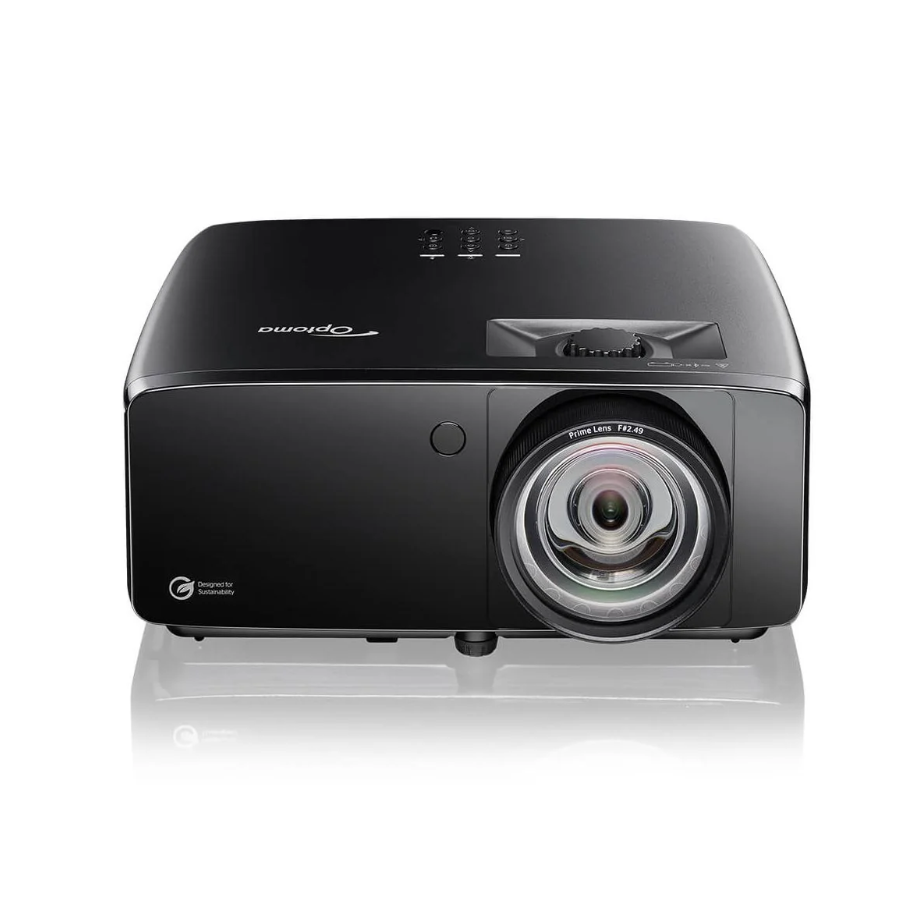

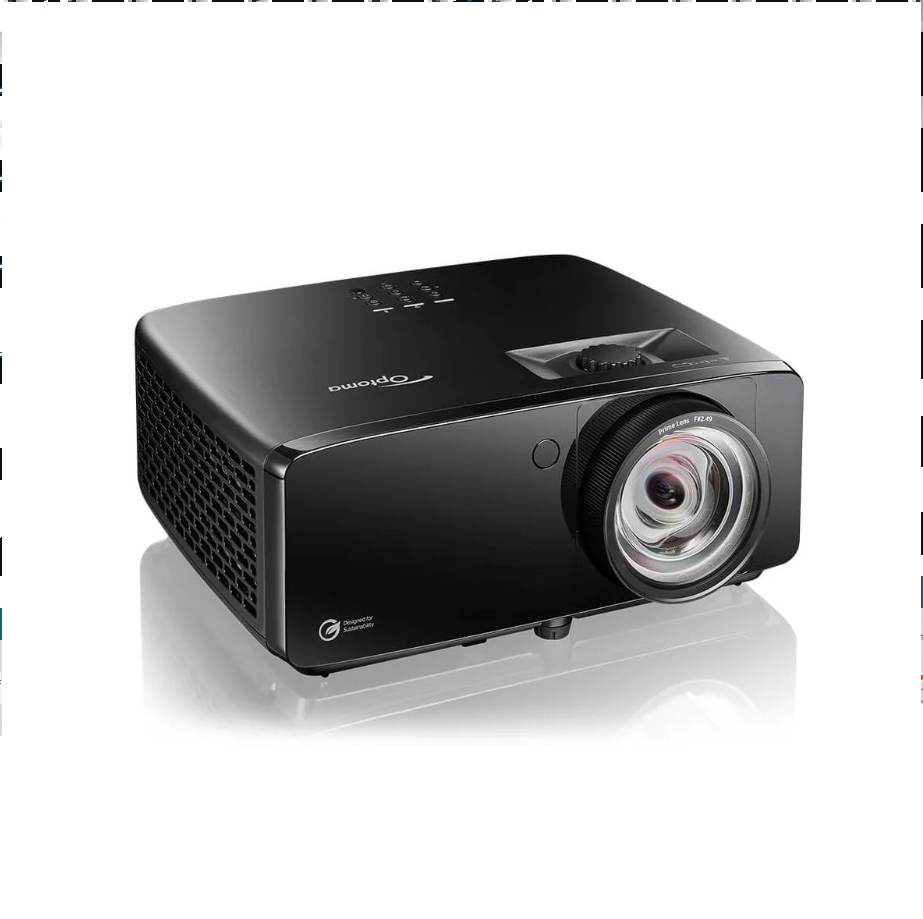

Optoma ZK521ST-B 4K UHD Short Throw Laser

The Optoma ZK521ST-B 4K UHD Short Throw Laser projector brings detailed 4K visuals and purpose-built performance to indoor golf simulators. It combines 4K UHD resolution with 5,000 ANSI lumens of brightness and a 0.79:1 short-throw ratio. This combination creates a bright, sharp image while allowing practical placement in simulator rooms. The Golf Sim Short Throw Lens also helps reduce shadows from the club and ball during the swing. Golfers can focus on the projected course without unnecessary visual interruptions.

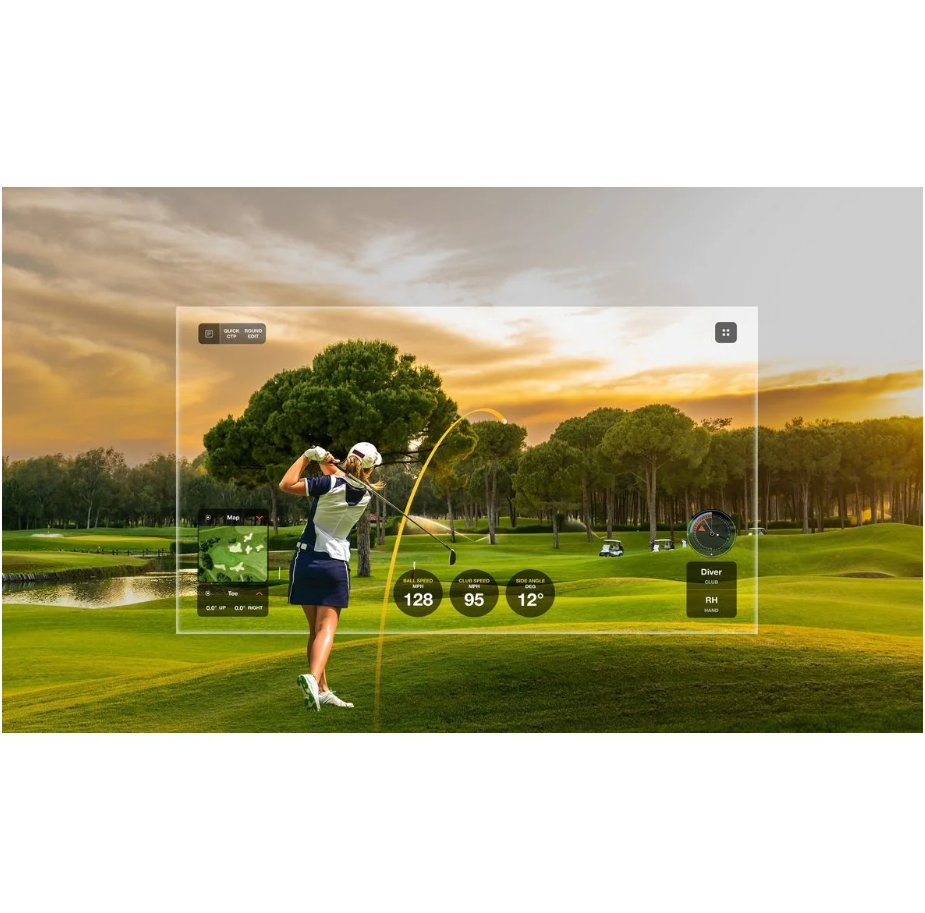

The projector produces a native 3840 x 2160 4K UHD image. This high resolution gives virtual courses greater definition than a standard 1080p image. Course details, tree lines, grass textures, ball-flight tracking, and simulator data remain clear on the impact screen. The added detail also makes small text and data overlays easier to read during practice or play. This makes the ZK521ST-B well suited to golfers who want their simulator visuals to match the quality of the rest of their setup.

Brightness plays an important role in golf simulator performance, especially in rooms with windows or other ambient light. The ZK521ST-B delivers 5,000 ANSI lumens through its DuraCore laser light source. This strong output helps prevent the image from appearing washed out in brighter indoor spaces. It also gives users more flexibility when designing a simulator room that cannot remain completely dark. The projector can still perform in a controlled-dark room when users want a more theater-like viewing environment.

Golf Sim Color Mode gives the projector another advantage in simulator use. The mode comes factory-tuned for the colors that dominate virtual golf courses. It enhances blue skies, deep shadows, and natural grass tones from the start. Users do not need to spend extensive time manually adjusting the picture before playing. The Golf Sim Short Throw Lens and Golf Sim Color Mode work together to create an image designed specifically around the visual demands of indoor golf.

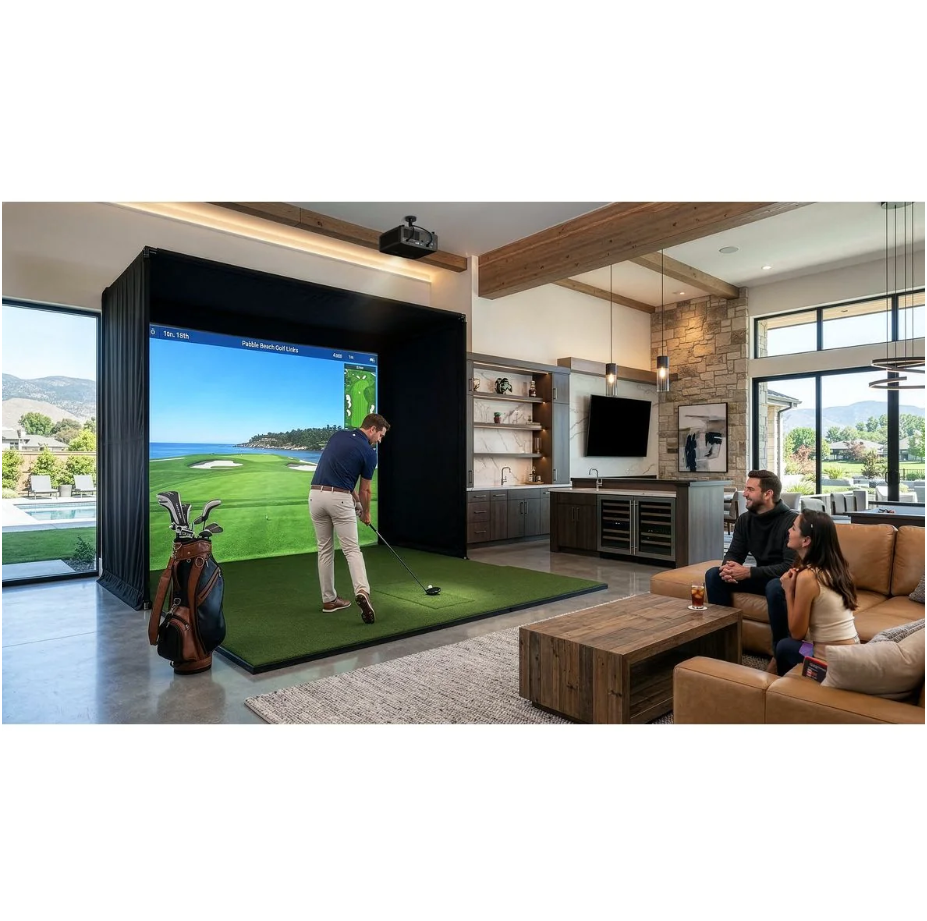

The 0.79:1 short-throw ratio also supports practical simulator installation. It allows the projector to produce a large image without requiring the long projection distance of a standard-throw model. This can simplify placement in rooms where the hitting area, impact screen, ceiling height, and projector position must all work together. The dedicated short-throw lens also minimizes shadows caused by the golfer’s club and ball during a swing. Actual throw distance depends on the selected screen size and room dimensions.

The ZK521ST-B uses a DuraCore laser engine with a rated life of up to 30,000 hours in Eco mode. The laser design removes the need for traditional bulb replacements and eliminates a warm-up cycle. This makes the projector convenient for frequent simulator sessions. Users can power up the system and begin playing without waiting for a lamp to reach full operating brightness.

Installation controls help users align the projected image with their impact screen. Smart Fit uses a smartphone camera to automatically align the picture to the screen. This reduces the need for manual adjustment during setup. Smart Move can detect obstacles and reposition the projected image around them. These automated tools make it easier to deal with the positioning challenges that can occur in golf simulator rooms.

The projector also includes horizontal and vertical keystone correction of ±15 degrees, four-corner adjustment, and vertical lens shift from 104% to 125%. These controls provide additional flexibility when the projector cannot sit perfectly centered with the screen. Users can adjust the image shape and position without relying on one placement method alone. This flexibility can be especially useful in simulator spaces where ceiling height, lighting, hitting position, or existing room features affect mounting options.

Responsive visual feedback is another important part of a simulator setup. The ZK521ST-B offers an input lag of 16.7 ms at 4K and 60 Hz. It can also reach 8.6 ms at 1080p and 120 Hz. These response figures help keep projected movement closely connected to the action generated by the simulator system. Golfers can see ball flight and other visual feedback quickly after each shot without unnecessary display delay.

The projector connects easily to a simulator gaming PC through its two HDMI 2.0 inputs. It works with simulator software platforms including GSPro, E6 Connect, and TGC 2019 when the software runs through the gaming PC. This compatibility gives golfers flexibility when choosing or upgrading their simulator software. The projector handles the visual output, while software compatibility remains dependent on the connected gaming computer.

Additional connections support more complex simulator and AV installations. The ZK521ST-B includes one VGA input, one RJ45 network connection, and one RS232 connection. Its outputs include two USB-A 2.0 ports, one 3.5 mm audio connection, and one 12V trigger. A built-in 15-watt speaker provides integrated sound when a separate audio system is not required. These options make it easier to connect the projector with common control, display, and audio equipment.

The projector supports 24/7 operation and 360-degree orientation. These capabilities give users more freedom when planning permanent simulator installations. The unit also operates at a noise level of 29 dB(A), which helps limit distracting projector noise during play. It weighs 6.6 pounds and measures 8.5 x 10.8 x 4.5 inches with its feet. Its compact footprint can simplify positioning in rooms where mounting space is limited.

The ZK521ST-B package includes the projector, a power cable, remote, and manufacturer documentation. A projector mount does not come with the unit and must be purchased separately. Knowing this before installation helps users plan the mounting hardware and other equipment needed to complete their simulator setup. The projector works with universal projector mounts, giving users options based on their room and preferred installation method.

The manufacturer’s standard projector warranty applies to the ZK521ST-B. Specific warranty terms vary by region, so buyers should confirm the applicable coverage for their location. This avoids assuming a fixed warranty period that may not apply in every market.

For golfers who want a projector designed around simulator use, the Optoma ZK521ST-B combines several important features in one unit. Its 4K UHD resolution delivers detailed course visuals, while 5,000 ANSI lumens help maintain a clear picture in rooms with ambient light. The dedicated Golf Sim Short Throw Lens reduces disruptive shadows, and Golf Sim Color Mode provides course-focused color tuning. Smart alignment tools further simplify setup. Together, these features make the ZK521ST-B a focused option for indoor golf simulators that require bright 4K projection, short-throw placement, and flexible image adjustment.
